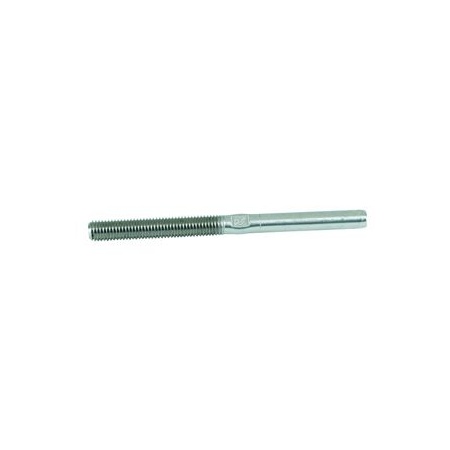

Bluewave Walzterminals - Gewindeterminals - metrisch
Edelstahl 1.4401
Edelstahl 1.4401
| Gew | Øa mm | L1 mm | L3 mm | NV mm | Drahtseil Ø | BRL kg |
| M5 | 5,5 | 87 | 42 | 4,5 | 2,5 mm | 800 |
| M6 | 6,35 | 100 | 48 | 5,0 | 3 mm | 1200 |
| M6 | 7,5 | 110 | 48 | 6,0 | 4 mm | 1200 |
| M8 | 7,5 | 117 | 57 | 6,0 | 4 mm | 2200 |
| M8 | 9,0 | 123 | 57 | 7,0 | 5 mm | 2500 |
| M10 | 9,0 | 130 | 63 | 7,0 | 5 mm | 3500 |
| M10 | 12,58 | 145 | 63 | 11,0 | 6 mm | 3500 |
| M12 | 12,58 | 162 | 80 | 11,0 | 6 mm | 5100 |
